Sieve Shaker
product details

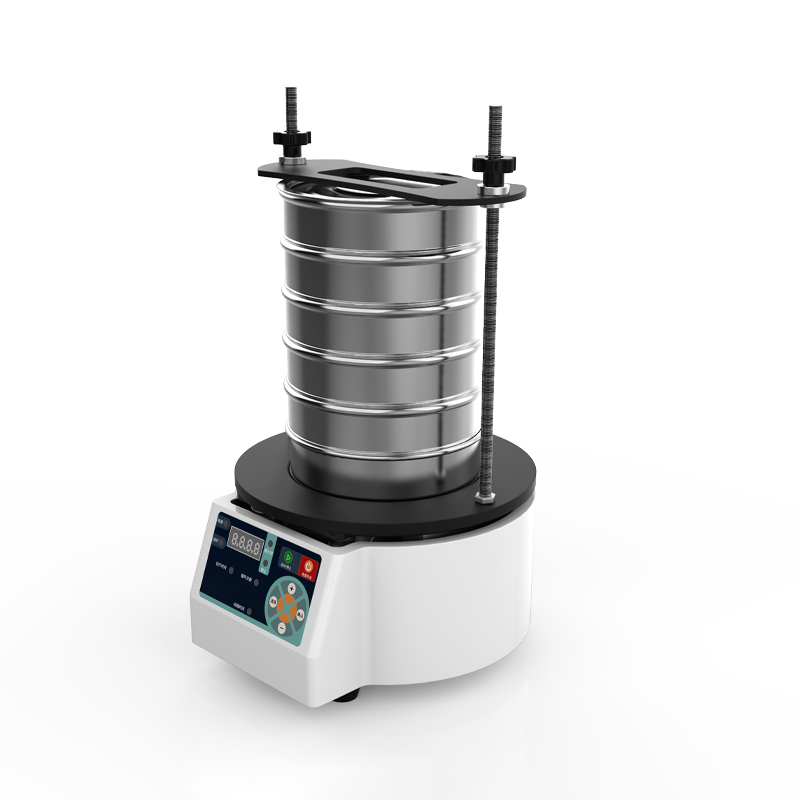

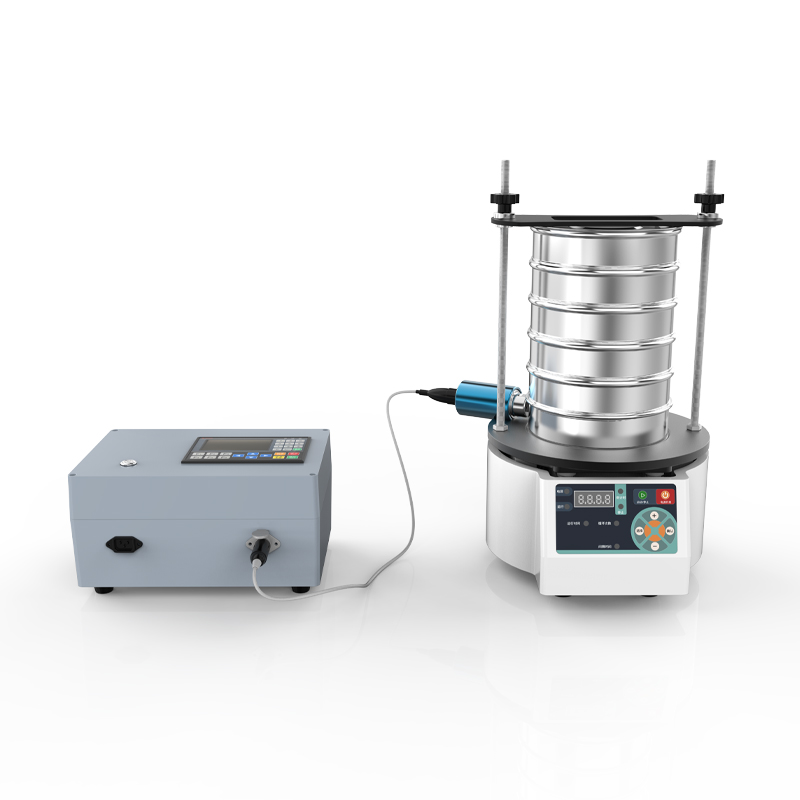

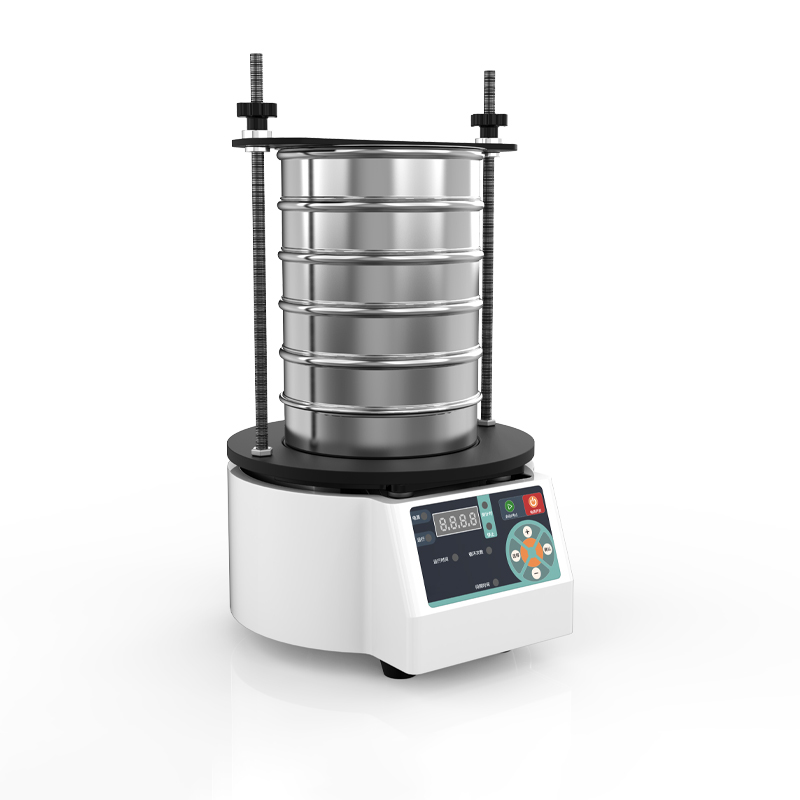

The WAS100 Ultrasonic Vibratory Sieve Shaker is a high-performance screening instrument designed for precise and efficient separation of powders in pharmaceutical, food, chemical, and metallurgical industries. Ultrasonic vibration is superimposed on mechanical motion to improve particle dispersion and screening efficiency.
By utilizing ultrasonic-frequency screening technology, the WAS100 effectively reduces mesh blockage and enhances material flow through the sieve. Samples are evenly distributed across the mesh surface, resulting in higher throughput and more consistent particle size classification.
The stainless steel cover ensures compliance with hygiene and pharmacopeia requirements while preventing powder leakage. With adjustable ultrasonic output, the system adapts easily to different materials and screening challenges.
Key Features
Ultrasonic-enhanced vibratory screening technology
Uniform particle distribution across the sieve surface
Lower noise and stable operation
Stainless steel cover for clean and enclosed sieving
Adjustable ultrasonic output for various material types
Technical Highlights
Model | WAS100 |
Sample Type | Powder, Granules, Small Lumps, Loose Materials |
Processing Mode | Particle Size Analysis, Separation, Classification |
Max. Load | ≤ 3 kg (depending on material properties) |
Max. No. of Sieves | 1–8 sieves (5 sieves standard, standard test sieves required) |
Max. Amplitude | 3mm |
Max. Frequency | 3000r/min |
Sieving Range | 20μm-125mm |
Voltage/Power | 220V/200W |
Dimensions (L*W *H) | 355*320*580mm |
Batch Load | ≤200g |
Sieve Shaker Weight | 26Kg |
Ultrasonic Generator Frequency | 18-35.5KHz |
Ultrasonic Power | 150W |
Operating Time Range | 1-9999s |
Cycle Range | 1-9999s |
Interval Time Range | 1-9999s |
Max. Sieve Diameter | 200mm |
Main Functions | Timed, Continuous Sieving, Intermittent Sieving |
Sieving Method | Dry Sieving |
