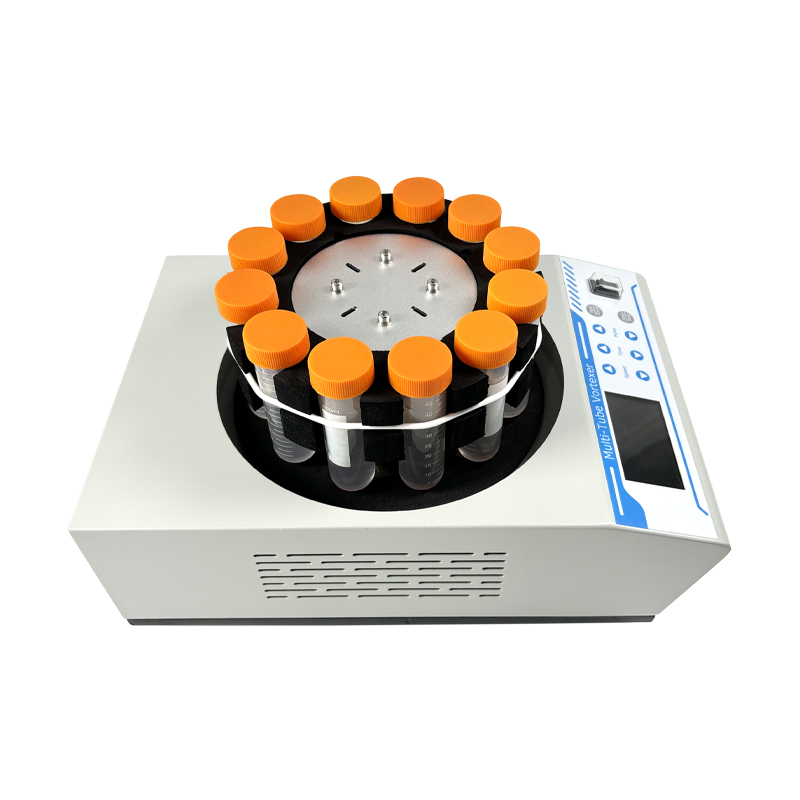

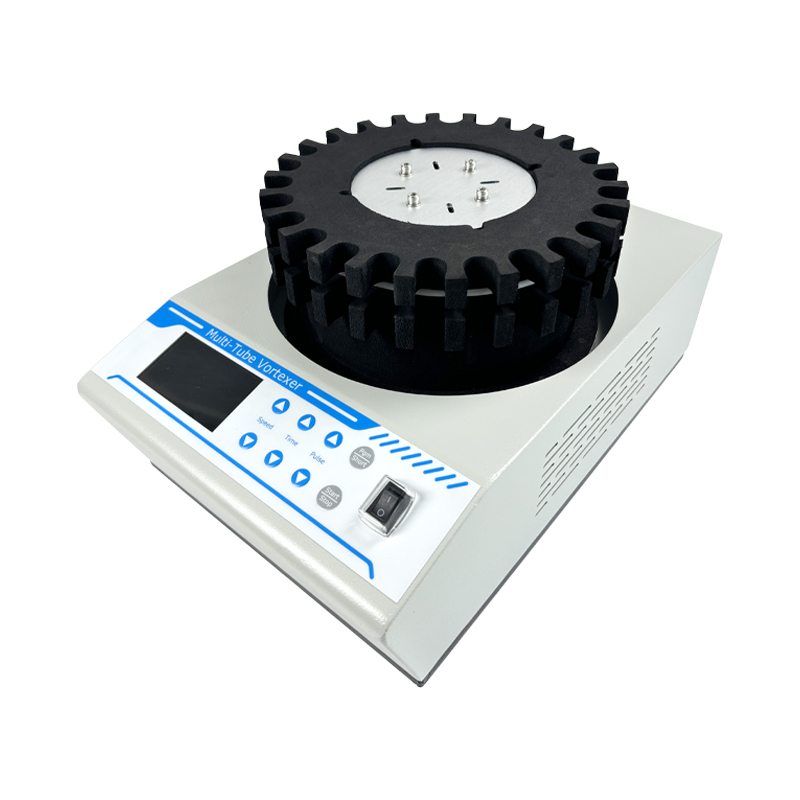

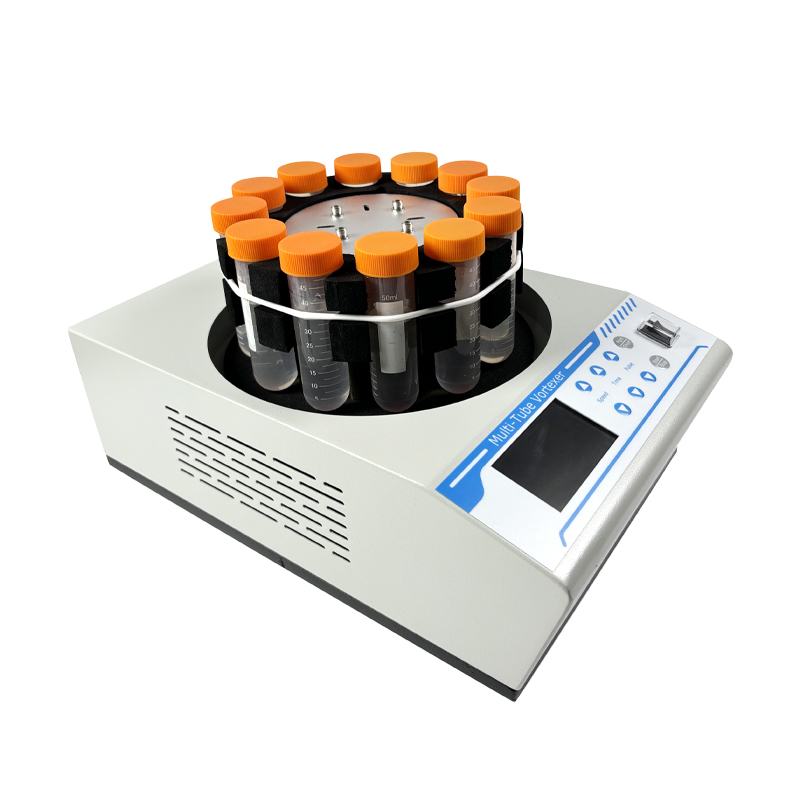

Vortex Mixer
product details
Features:
Colorful LCD displays time and shaking speed.
1min~99h59min time range, automatic warning sound when finish working.
Pulsing program for interval mixing.
Brushless DC motor: precise shaking speed, long service life maintenance-free.
Process up to 26 samples at a time to make the experiment more convenient and efficient.
Humanized program design, built-in timing/continuing/pulse/short mix operation modes.
Parameters
Project | Parameter | |||
Speed range | 500~3000rpm | |||
Orbit | 3mm | |||
Time setting range | 1min~99h59min/∞ | |||
Pulse function | Yes | |||
Timing set for pulse | 2s~9min59s | |||
Interval timing between pulse | 1s~9min59s | |||
Times for pulse | 1~99times | |||
Pulse mode setting during running | Yes | |||
Short mix | Yes | |||
Max load | 4.5kg | |||
Power supply | 150W | |||
Voltage | AC100~240V/50-60Hz | |||
Fuse | 250V 3A Ф5x20 | |||
Capacity | Type | Tube quantity | Tube diameter | Tube max. length |
MS400-T16 | 26 | ￠10~￠16mm | 160mm | |
MS400-T32 | 12 | ￠16~￠32mm | 120mm | |
Dimension(mm) | 380x250x210 | |||
Weight(kg) | 14.3 | |||
