Vacuum Centrifugal Concentrator
product details

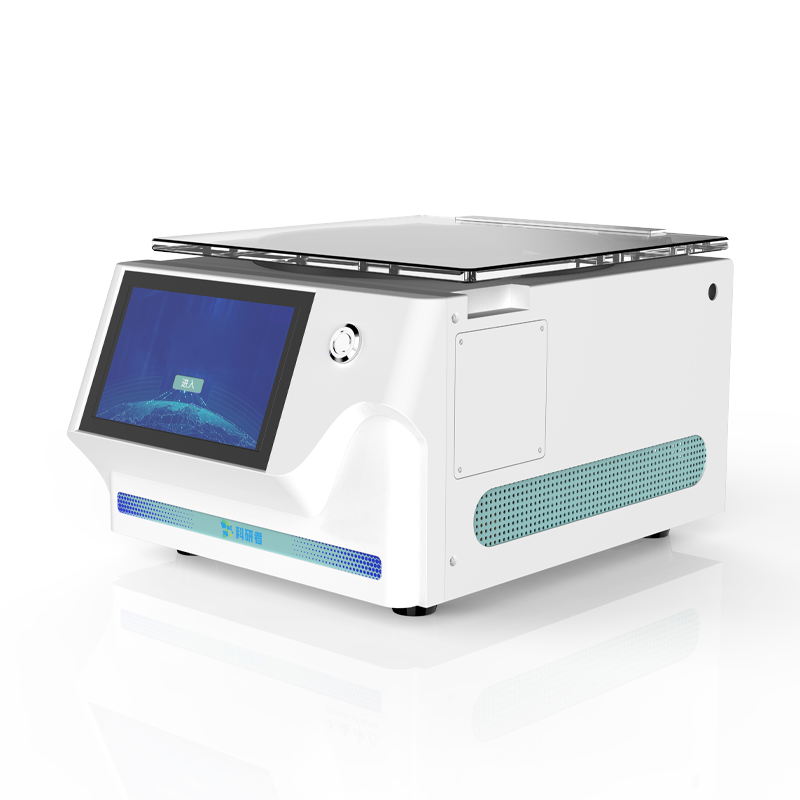

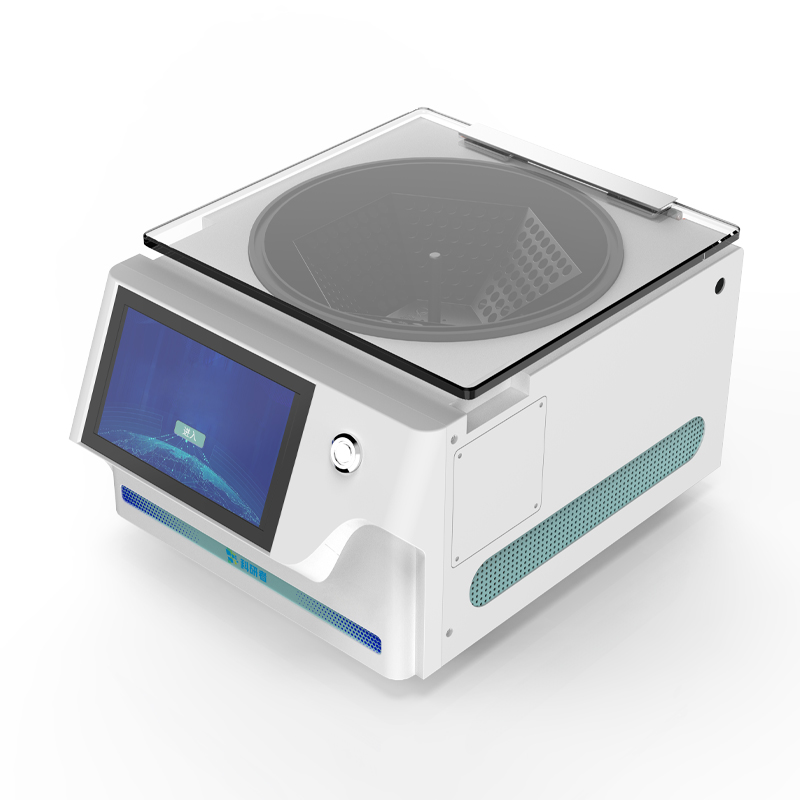

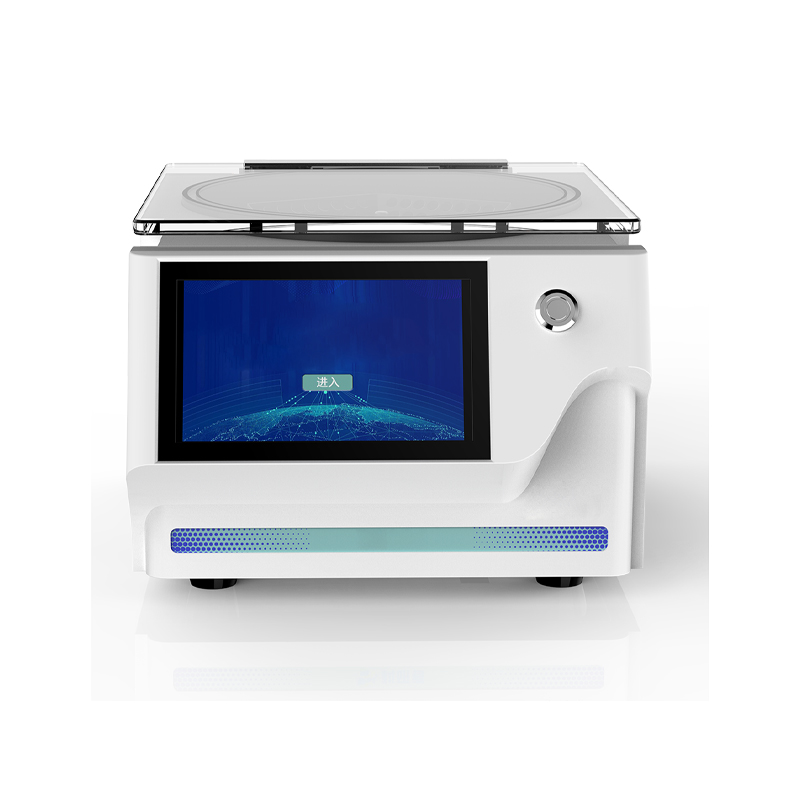

The WVC-1AL Vacuum Centrifugal Concentrator is an advanced solution designed for rapid and efficient concentration or drying of biological and non-biological samples. By integrating centrifugal force, vacuum, and controlled heating, it enables fast solvent evaporation while preserving sample integrity.
Equipped with a magnetic levitation motor, the system ensures ultra-quiet operation, smooth start-up, and maintenance-free performance. Its intelligent control system supports one-touch operation, allowing users to easily set centrifugal speed, runtime, temperature, and monitor vacuum levels in real time.
The optimized chamber structure minimizes sample loss and eliminates cross-contamination, making it ideal for sensitive applications. With high-throughput capability, the WVC-1AL can process dozens to hundreds of samples simultaneously, significantly improving laboratory efficiency.
Designed for versatility, the system supports multiple rotor options and features an observation function that allows real-time monitoring without interrupting operation.
Key Features
Magnetic levitation motor for ultra-quiet, maintenance-free operation
Intelligent control system with real-time parameter display
Low-temperature concentration to protect sample activity
Minimal sample loss with optimized airflow design
High-throughput processing for large sample batches
Real-time observation without stopping operation
Multiple rotor options for flexible applications
Adjustable temperature for precise concentration control
Corrosion-resistant construction for long-term durability
Applications
Widely used in:
DNA/RNA research, molecular biology, biochemistry, life sciences, food safety testing, environmental analysis, forensic science, drug analysis, HPLC sample preparation, SPE solid-phase extraction, and general laboratory concentration.
Technical Parameters
Model | WVC-1AL |
Rotor Configuration | 1.5/2mL*132; 1.5/2mL*240; 5mL*72; (10mL–15mL)*28; 50mL*8 + 10mL* 8; 100mL* 8; 250mL* 4; Dual-layer rotor: 2mL*90*2; Progressive vial: 4mL* 60; 8 mL*32; Custom rotors available upon request |
Chamber Temperature | Room temperature to 100 °C (optional infrared heating) |
Programs | 48 programs (8 temperature gradients) |
Ultimate Vacuum | ≤ 0.3 mbar (vacuum control range: 10–1000 Pa) |
Speed Range | 100–2000 rpm |
Time Setting | 0–9999 h 59 min |
Power Supply | AC 220 V, 50/60 Hz, 10 A |
Cold Trap Temperature | −50 °C, −65 °C, −70 °C, −110 °C (optional) |
Noise Level | 65 dB |
Vacuum Display | Digital display |
Total Power | 2000 W |
Maximum Centrifugal Force | 550xg |
Main Unit Weight | 33 kg |
Centrifugal Imaging Function | Available |
Overall Dimensions (W*D*H) | 600*400*360 mm |
