Autoclave
product details

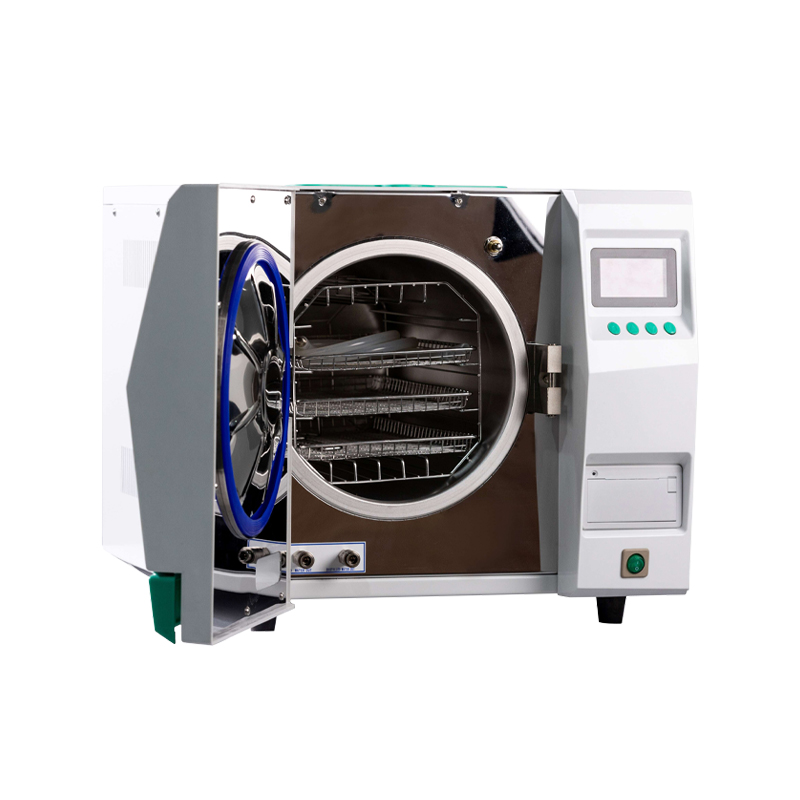

The WTM-XD20DV/WTM-XD24DV vacuum steam autoclave is designed for safe, efficient, and high-quality sterilization. Using saturated steam and advanced pulse vacuum technology, it guarantees thorough sterilization of surgical tools, laboratory glassware, and medical supplies. With its drying function and cycle recording system, it meets modern sterilization standards in hospitals, clinics, and research labs.
Main Characteristics:
Automatic, user-friendly sterilization control system
Multi-cycle pulse vacuum exhaust for reliable sterilization of wrapped and hollow instruments
Drying capability to ensure moisture-free instruments after sterilization
Internal printer for detailed process documentation
Bowie & Dick penetration test function for quality assurance
Built-in self-check system for quick troubleshooting
Comprehensive Safety System:
Door safety lock prevents opening under pressure

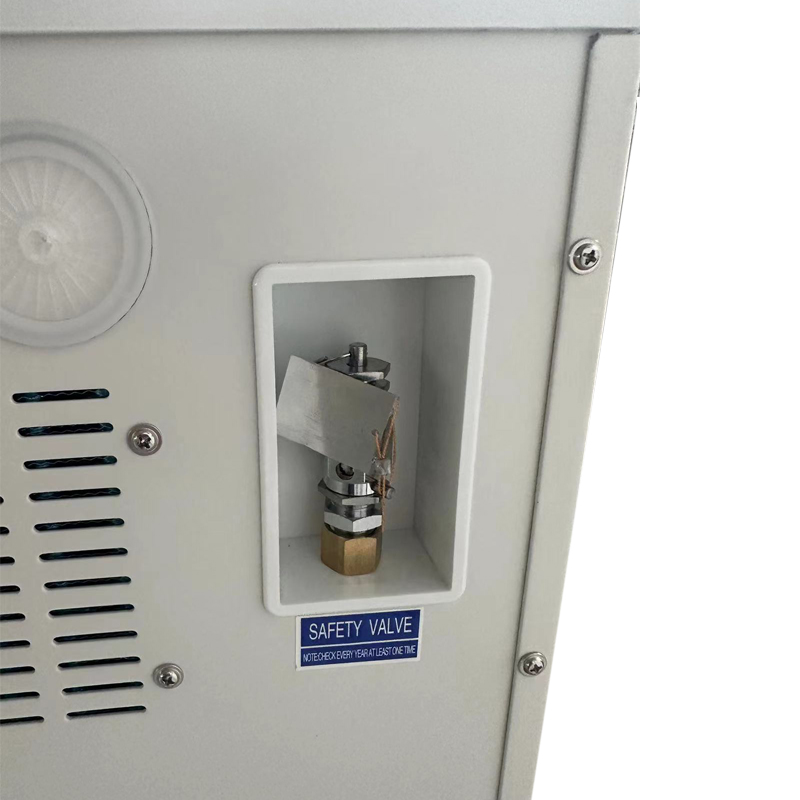

Over-pressure valve ensures chamber safety
Water level monitoring to prevent dry heating
Over-current protection for stable and secure performance
Technical Parameters
Model | WTM-XD20DV | WTM-XD24DV |
Chamber Volume | 20 Liters（φ250×360 mm） | 24 Liters（φ250×450 mm） |
Max working temperature | 134℃ | 134℃ |
Max working pressure | 0.22MPa | 0.22MPa |
Adjusted sterilizing temperature range | 105℃~134℃ | 105℃~134℃ |
Adjusted timer range | 0~99min | 0~99mins |
Adjusted drying time range | 0~99min | 0~99mins |
Hot Average | ≤±1℃ | ≤±1℃ |
Power supply | AC220V/50HZ | AC220V/50HZ |
Dimension | 480*680*455mm | 480*680*455mm |
Transport dimension | 580*790*580mm | 580*790*580mm |
Gross/Net Weight | 56kg/47kg | 57kg/53kg |
