Thermocycleur
Détails du produit

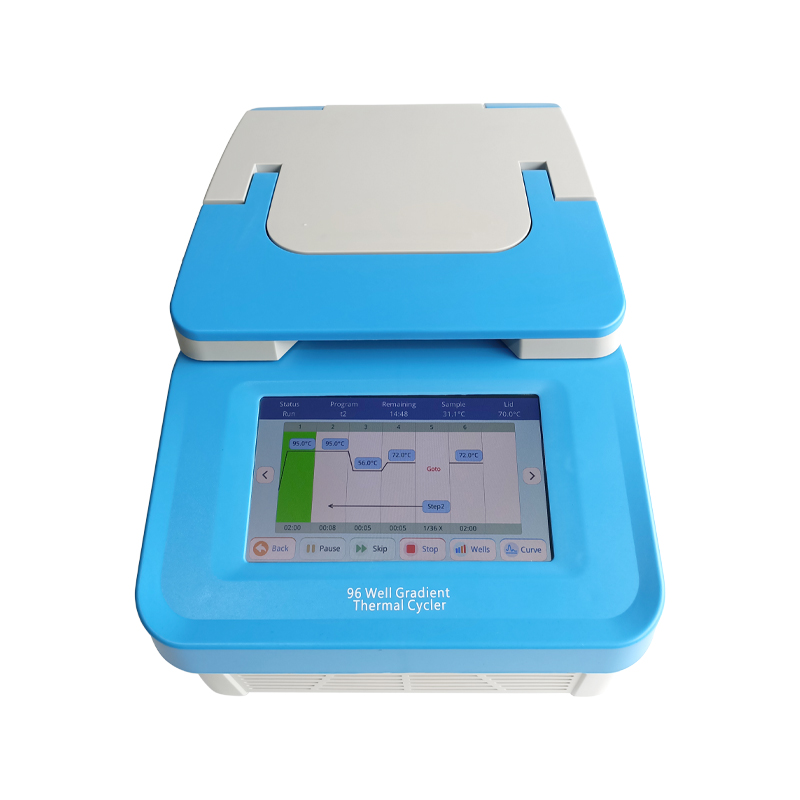

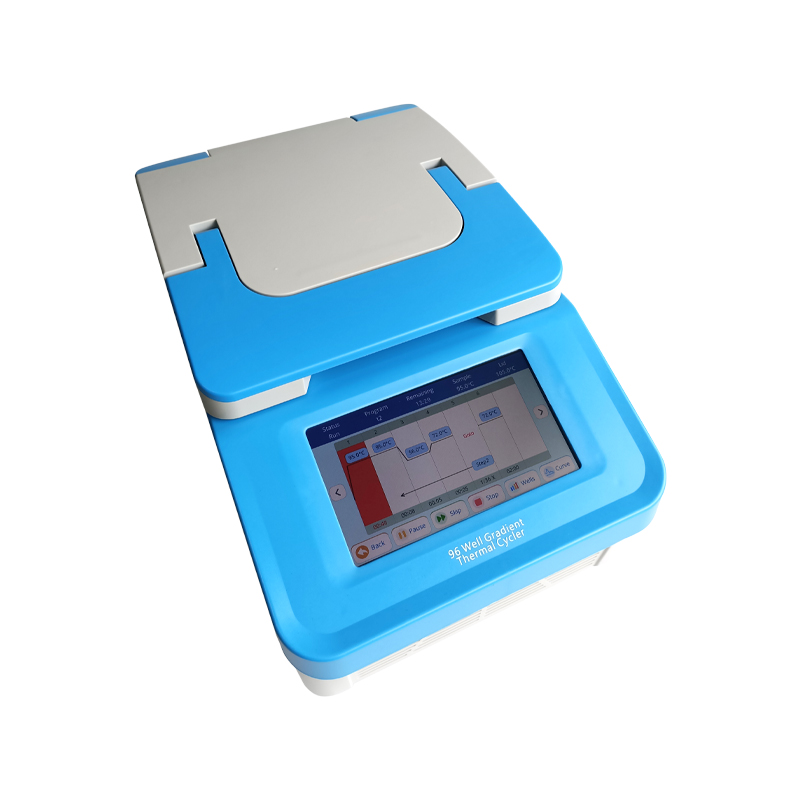

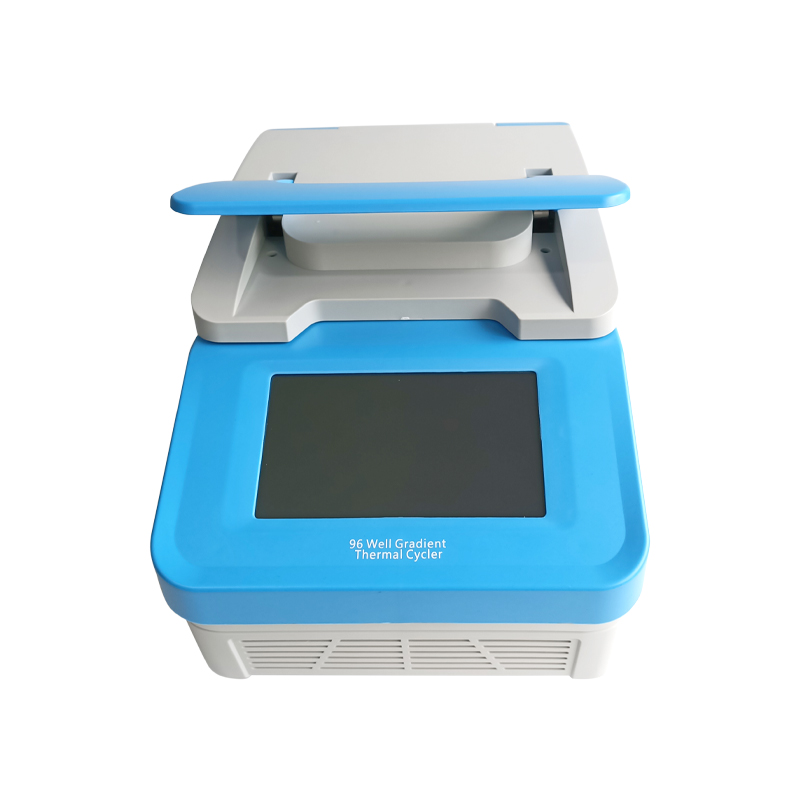

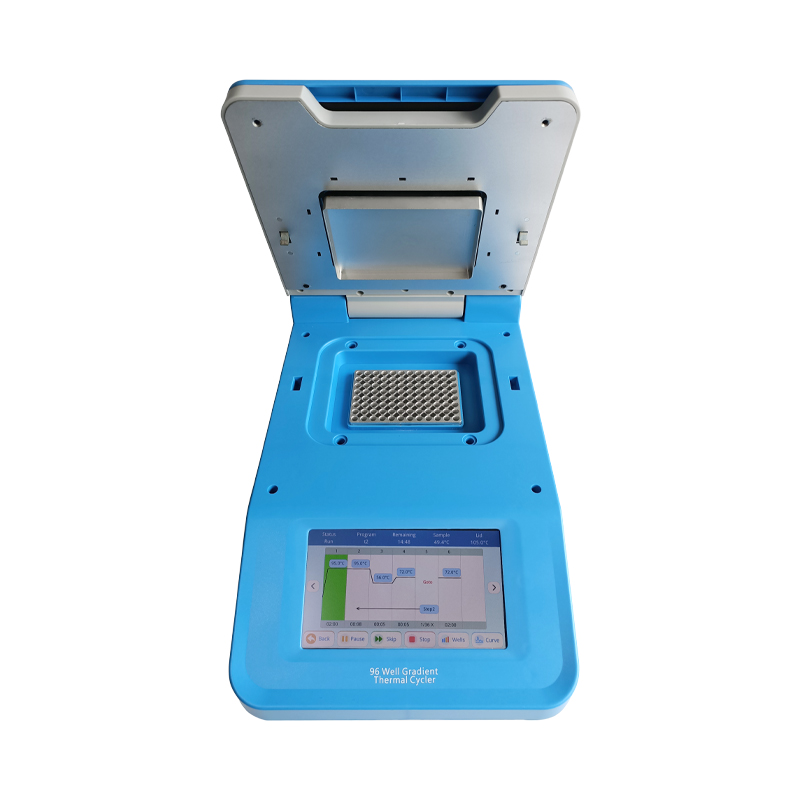

The WGT9600 is a compact, high-speed gradient PCR thermal cycler that delivers precision and flexibility for laboratories working in genetics, biotechnology, diagnostics, and academic research.
Key Features:
5°C/sec heating & cooling rate for ultra-fast PCR runs
12-gradient temperature zones for annealing optimization
7” color touchscreen for intuitive operation
Auto-adjusting heated lid prevents evaporation
Anodized aluminum block for fast, uniform temperature transfer
USB support for data export and software upgrade
Built-in quick incubation modes for denaturation, enzyme reactions, ELISA
Power-loss auto recovery & alarm detection system
This reliable and intelligent PCR amplification platform supports both novice users and advanced researchers in optimizing and executing high-quality thermal cycling protocols.
Parameters
Capacity | 96*0.2mL (0.2mL PCR tubes, 8-tube strips) |
Temp. Setting Range | 0°C ~105°C |
Temp. Control Range | RT.-25°C ~105°C |
Heated Lid Temp. Setting Range | 30°C ~112°C |
Heated Lid Temp. Control Range | RT+5°C ~112°C |
Temp. Uniformity | ≤±0.2°C |
Temp. Accuracy | ≤±0.2°C |
Max. Heating Rate | 5°C /sec |
Max. Cooling Rate | 4°C /sec |
Temp. Display Resolution | 0.1°C |
Temp. Control Method | Block/Tube |
Display | 7-inch color touch screen, 800*480 Pixel |
Communication Interface | USB*2 |
Tm Calculation | Automated |
Program Memory | 10000+ |
Time Increment/Decrement | -999~999s |
Temp. Increment/Decrement | -10~10°C |
Gradient Temp. Range | 30~105°C |
Gradient Setting Range | 0.1~30°C |
Gradient Temp. Uniformity | ≤±0.2°C |
Gradient Temp. Accuracy | ≤±0.2°C |
Temp. Change Rate | 0.1~4°C /s |
Single Step Time Range | 0~9h59min59s/∞ |
Program Max. Cycle Numbers | 200 |
Max. Steps Of The Program | 30 |
Program Pause Function | Yes |
16C Insulation | Forever |
Auto Data Protection | Yes |
On-Screen Report | Yes |
Power | 800W |
Voltage | AC100~240V, 50-60Hz |
Fuse | 250V 10A Ф5*20 |
Dimension(Mm) | 420*260*245 |
Weight(Kg) | 11 |
