Concentrateur d'échantillons
Détails du produit

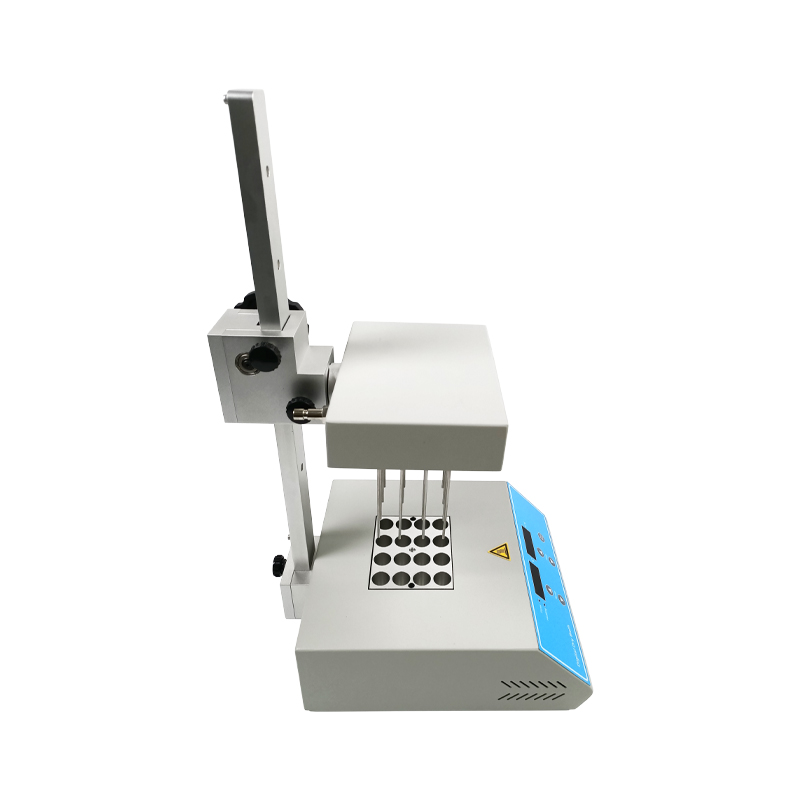

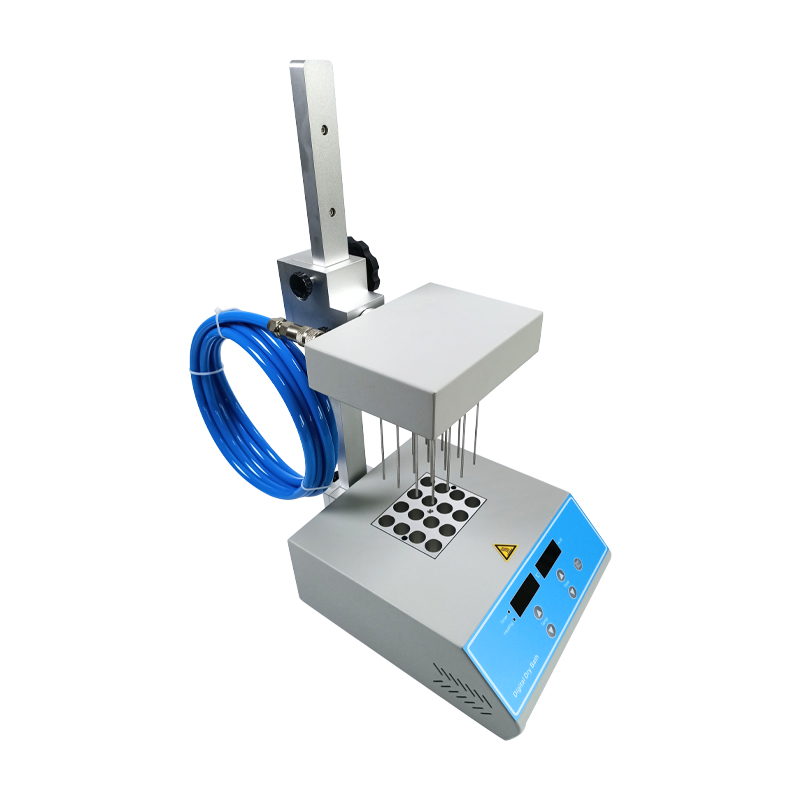

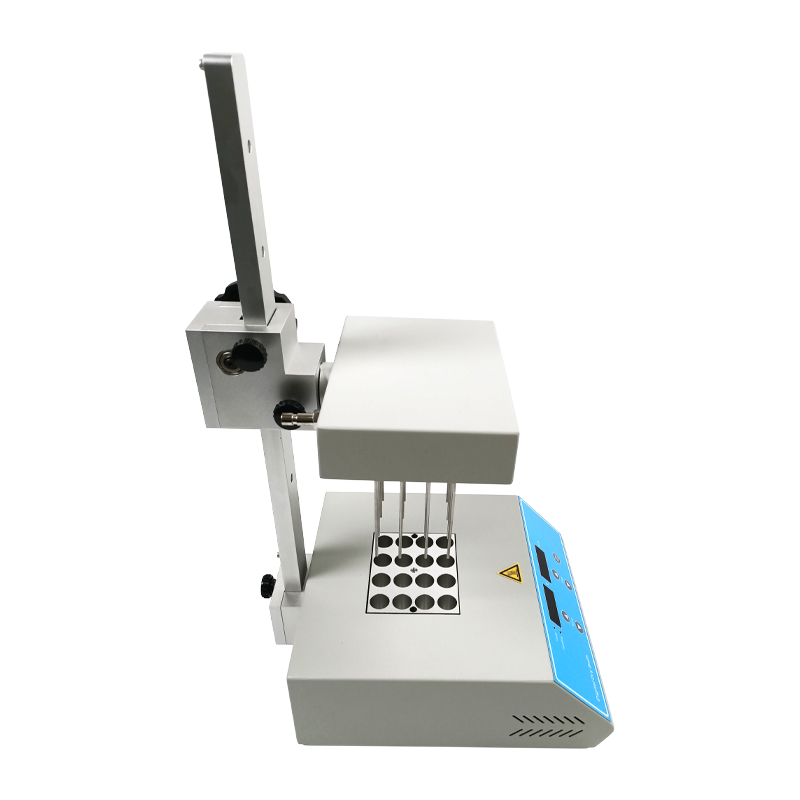

The WSC100-1 Sample Concentrator is a lab-grade nitrogen evaporation device that allows simultaneous concentration of multiple samples with precise temperature control and easy block replacement. It’s a reliable solution for residue analysis, food testing, environmental monitoring, and more.
Key Features
Microprocessor + PID control for accurate temperature regulation
High-purity aluminum block offers fast, uniform heat transfer
Process multiple samples at once using nitrogen blow-down

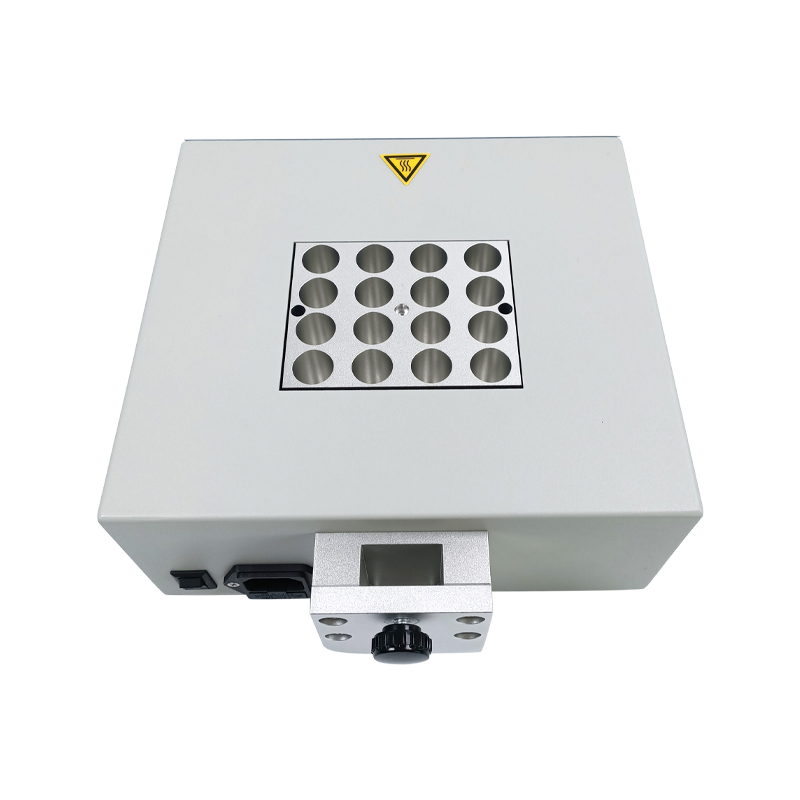

Interchangeable blocks, easy to clean & disinfect
Built-in over-temp protection and auto alarm system
Temperature calibration ensures repeatable results
Application Areas
Agricultural Testing: pesticide residues in grains, fruits, vegetables
Food Safety: wine, milk, beer, and beverage testing
Environmental Monitoring: water quality (drinking, groundwater, wastewater)
Pharma Testing: traditional Chinese medicine, drug compounds
Biological Analysis: hormones, LC/GC-MS sample preparation
WSC100-1 is your dependable partner in high-throughput sample evaporation and laboratory efficiency.
Parameters:
Model | WSC100-1 |
Temp range | RT.+5℃ -160℃ |
Temp accuracy | ±0.5℃(@40℃) |
Temp accuracy | ±1℃(@120℃) |
Temp uniformity | ±0.5℃ |
Display accuracy | 0.1℃ |
Timing range | 1min-99h59min/∞ |
Heating time | ≤15min(from 25℃ to 160℃) |
Needle length | 150mm |
Nitrogen flow rate | 15L/min |
Nitrogen pressure | 0.02Mpa(Gas needle≤16pcs) 0.05Mpa(Gas needle＞16pcs) |
Block quantity | 1 |
Power | 300W |
Voltage | AC220V or AC110V, 50/60Hz |
Dimension(mm) | 260*20*50 |
Weight | 7.0kg |
Optional Blocks:
Type | Description | Type | Description |
MD03 | 24*10mm | MD09 | 12*20mm |
MD04 | 24*12mm | MD10 | 8*26mm |
MD05 | 24*13mm | MD11 | 4*28mm |
MD06 | 16*15mm | MD12 | 3*40mm |
MD07 | 16*16mm | MD15 | 24*1.5ml(centrifuge tube) |
MD08 | 12*19mm | MD16 | 24*2.0ml(centrifuge tube) |
