Koncentrator uzoraka
Detalji proizvoda

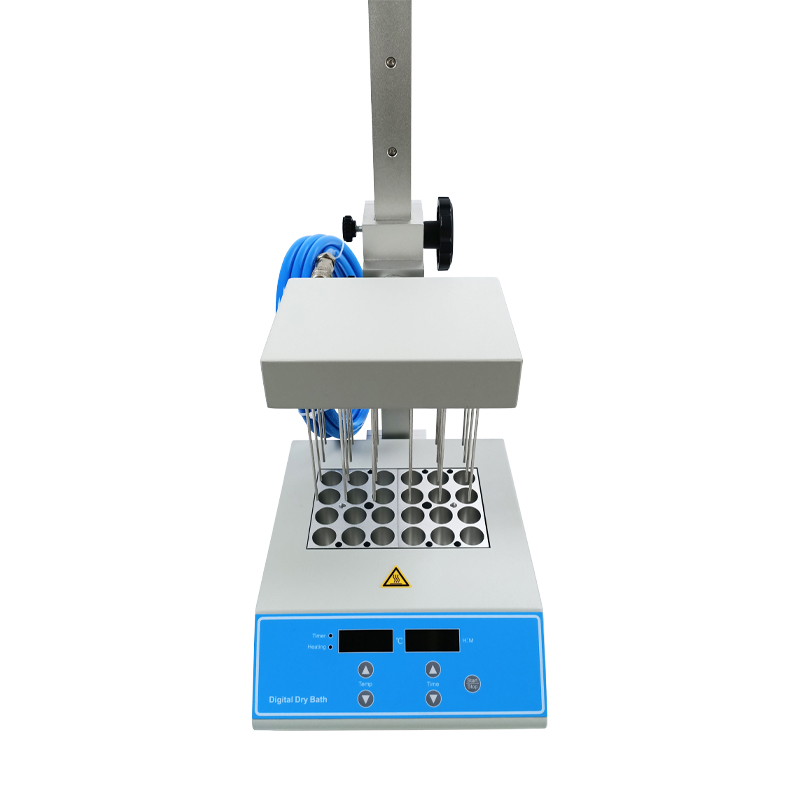

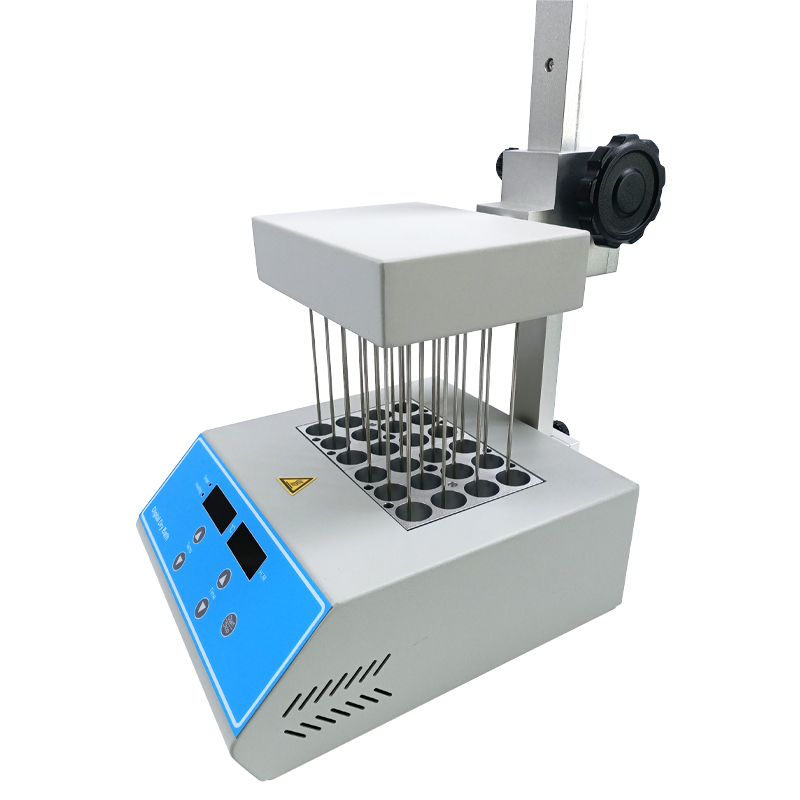

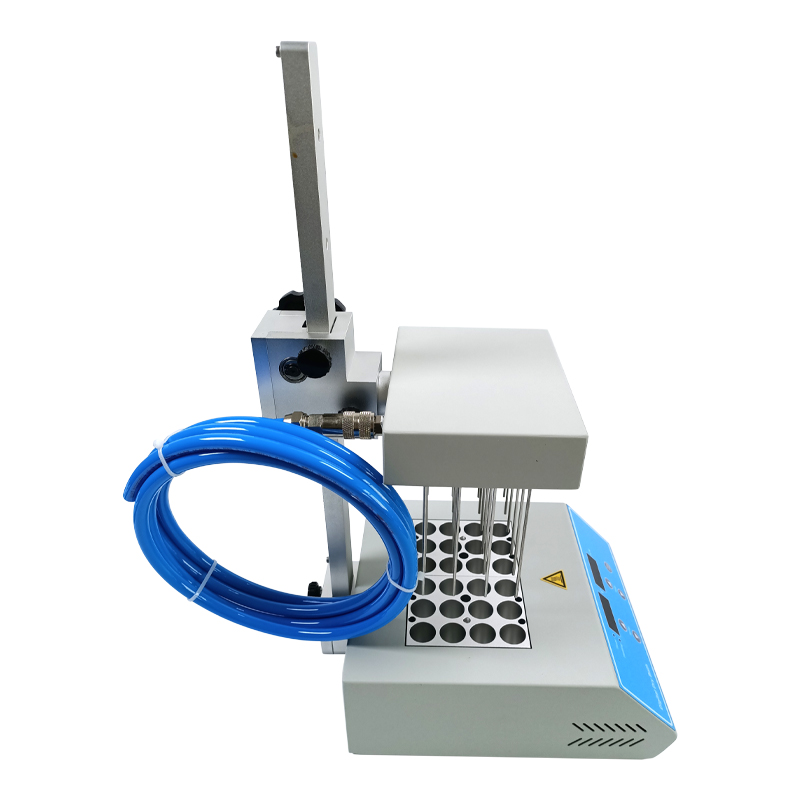

The WSC100-2 Sample Concentrator utilizes a non-water bath dry heating system with high-purity aluminum blocks, providing uniform heat distribution and eliminating contamination risks associated with water baths. It combines intelligent microprocessor control and PID fuzzy logic to maintain stable temperatures throughout the concentration process. Designed for labs that require efficient solvent evaporation from multiple samples, the instrument supports rapid nitrogen blowdown across all positions simultaneously.
Technical Features:
▼ Heating System: Dry block with high-purity aluminum, replacing conventional water bath
▼ Control System: Microprocessor with PID fuzzy logic ensures ±0.5°C accuracy
▼ Capacity: Supports simultaneous evaporation of a large number of samples
▼ Safety: Built-in over-temperature protection and real-time fault alarms

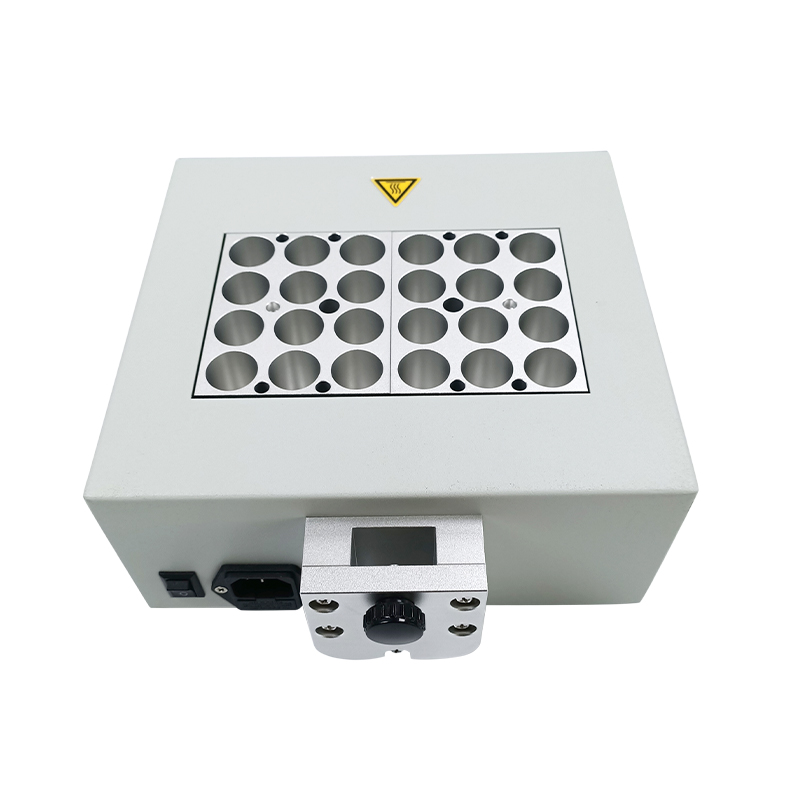

▼ Convenience: Modular block design allows easy swap and cleaning
▼ Calibration: Built-in temperature deviation calibration for precision consistency
Application Scenarios:
▼ Pesticide residue analysis in agri-products
▼ Water quality monitoring in environmental protection bureaus
▼ Hormone analysis and mass spectrometry sample prep in biomedical labs
▼ Dairy, alcohol, and beverage testing in food industry labs
▼ Drug screening and extraction in pharmaceutical R&D
Parameters:
Model | WSC100-2 |
Temp range | RT.+5°C -160°C |
Temp accuracy | ±0.5℃(@40℃) |
Temp accuracy | ±1℃(@120℃) |
Temp uniformity | ±0.5℃ |
Display accuracy | 0.1℃ |
Time range | 1min-99h59min/∞ |
Heating time | ≤15min(from 25℃ to 160℃) |
Needle length | 150mm |
Nitrogen flow rate | 15L/min |
Nitrogen pressure | 0.02Mpa (Gas needle≤16pcs) 0.05Mpa (Gas needle＞16pcs) |
Block quantity | 2 |
Max power | 500W |
Voltage | AC220V or AC110V, 50/60Hz |
Dimension(mm) | 260*220*450 |
Weight(kg) | 7.5 |
Optional Blocks:
Type | Description | Type | Description |
MD03 | 24*10mm | MD09 | 12*20mm |
MD04 | 24*12mm | MD10 | 8*26mm |
MD05 | 24*13mm | MD11 | 4*28mm |
MD06 | 16*15mm | MD12 | 3*40mm |
MD07 | 16*16mm | MD15 | 24*1.5mL (centrifuge tube) |
MD08 | 12*19mm | MD16 | 24*2.0mL (centrifuge tube) |
