Koncentrator uzoraka
Detalji proizvoda

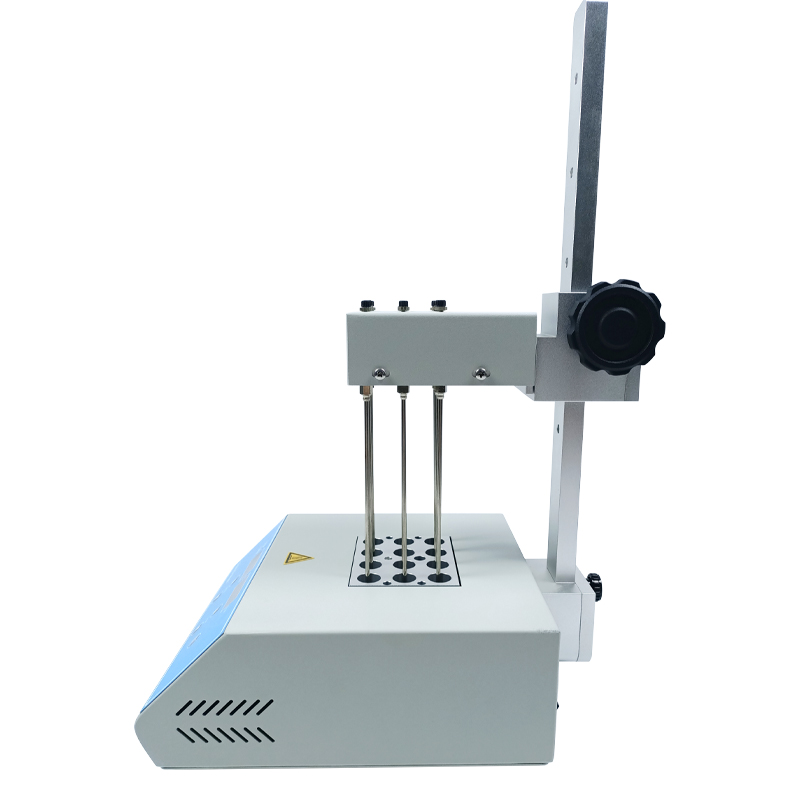

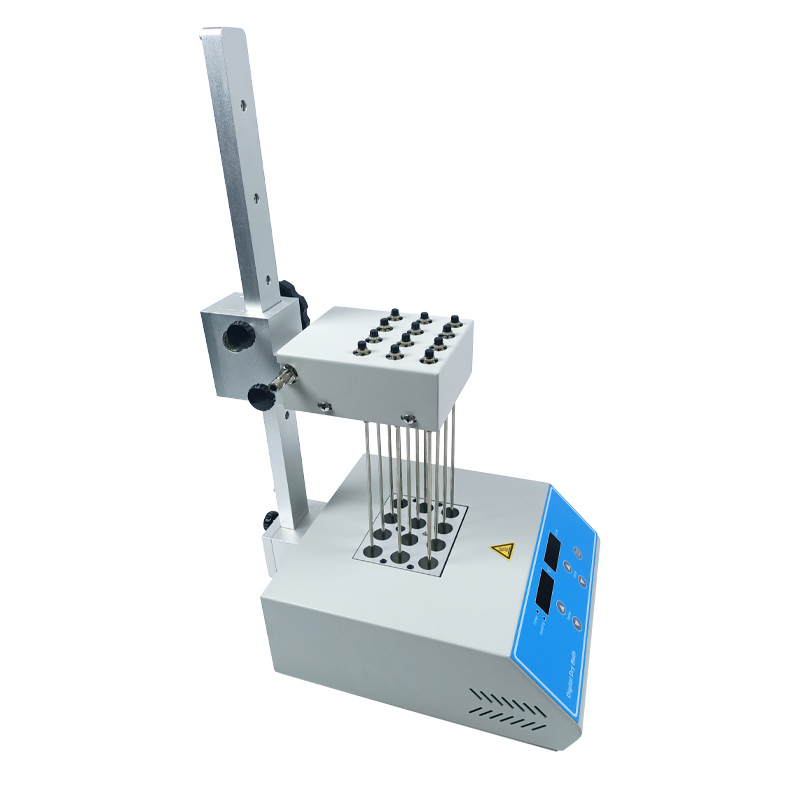

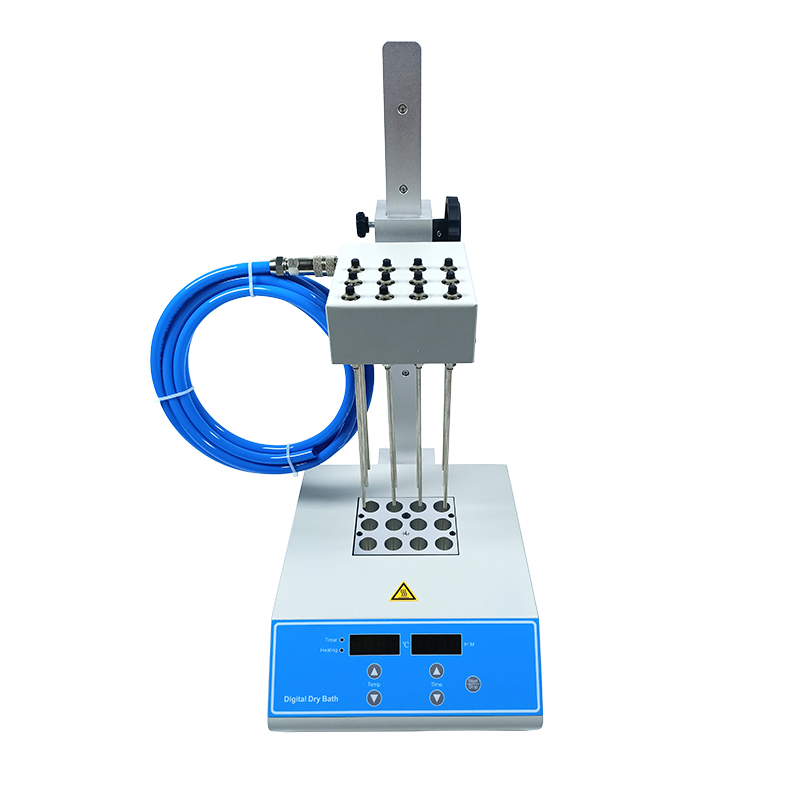

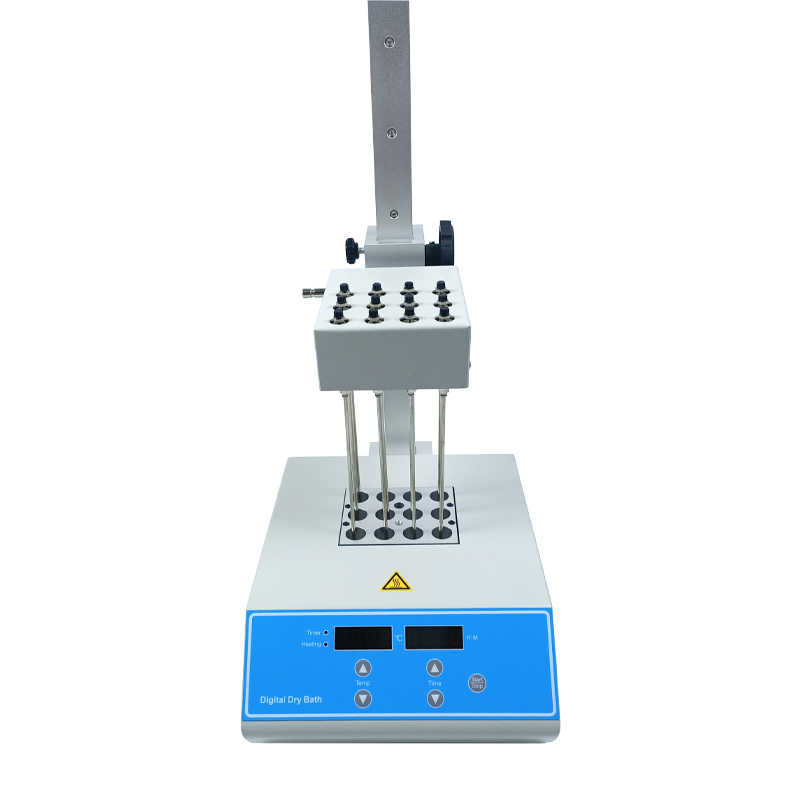

The WSC200-1 Sample Concentrator employs a high-purity aluminum heating block to replace traditional water baths, ensuring rapid and uniform thermal conduction. Integrated with a PID fuzzy control system, the device maintains highly accurate temperature control during nitrogen blowdown. Each sample tube receives nitrogen independently, with airflow rates adjustable for fine-tuned evaporation speed, minimizing cross-contamination or sample loss.
Technical Features:
◆ Control System: Microprocessor with PID fuzzy logic
◆ Heating Method: High-purity aluminum block for dry, stable heat transfer
◆ Airflow: Individually regulated nitrogen flow to each tube
◆ Capacity: Supports concentration of multiple samples in parallel
◆ Safety: Over-temperature protection and simplified operation workflow
Application Fields:
◆ Agricultural product testing (pesticide & fertilizer residues)
◆ Water quality and environmental lab testing
◆ Sample preparation for chromatographic and mass spectrometry analysis
◆ Quality control in food and beverage industries
◆ R&D and QA in pharmaceutical labs
Parameters:
Model | WSC200-1 |
Temp range | RT.+5℃-160℃ |
Temp accuracy | ±0.5℃(@40℃) |
Temp accuracy | ±1℃(@120℃) |
Temp uniformity | ±0.5℃ |
Display accuracy | 0.1℃ |
Timing range | 1min-99h59min/∞ |
Heating time | ≤15 min (from 25℃ to 160℃) |
Needle length | 150mm |
Nitrogen flow rate | 15L/min |
Nitrogen pressure | 0.1Mpa |
Block quantity | 1 |
Max power | 300W |
Voltage | AC220V or AC110V, 50/60Hz |
Dimension(mm) | 260*220*475 |
Weight(kg) | 6.0 |
Optional Blocks:
Type | Description | Type | Description |
MD50 | 12*10mm | MD54 | 12*16mm |
MD51 | 12*12mm | MD55 | 12*19mm |
MD52 | 12*13mm | MD56 | 12*20mm |
MD53 | 12*15mm | --- | --- |
